Cdhpower 26" Rear Mag Wheel/bike Wheel Rims & 44t Sprocket-gas Motorized Bicycle
USD $104.88
Condition : New
Free Shipping
Notify me when the price drops
We will email you if we find a lower price on this product!
NOTE:
1. It's inevitable that there will be SCRATCHES or PAINT PEELING during transportation, buy carefully if you are concerned.
2. Before installing, please clean the metal scrap in hub firstly;
3. Put engine oil or lubricating oil on the axle and the six screw holes to disc brake to prevent the screw from damaging!
4. For Motorized Bikes: Mag Wheels can load Max 330lbs/150kg
5. For Non-Motorized Bikes: Mag Wheels can load Max 385lbs/175kg
- Attention: Excluding 6pcs allen bolts to mag wheel, we suggest allen bolts M5x23mm. if your sprocket is thicker than standard sprocket, we suggest bolts M5x25mm.
- 26" Rear Mag Wheel ONLY;
- Material: Aluminum
- Rear Width:135mm;
- Inner Diameter of Rim: 17.5mm/0.689inch;
- Rim Width:1.062 inch Approximately
- Brake Compatibility: Disc Brake;
- Light and very durable.
- 26"/26 inch Size Wheel;
- Designed mainly for motorized bicycles
- Package: 1pc Rear Wheel with Related Axle, 1pc 44T Sprocket, Excluding 6 bolts
- Rim's diameter is about 570mm, the diameter would be about 660mm after installed with tire and inner tube, that's called 26 inch wheel.
- Compatible with rotary flywheel 7/8/9 Speed;
- Compatible with Rotary Single Speed Flywheel CDHPOWER Durable 22T Sprocket Single Speed Bicycle Flywheel-Gas Motorized Bike
- Fit Flywheel with Size of thread :1.375"*24T
- Put grease/lubricating oil on thread of wheel to prevent damage of thread from Riding
- The hole spacing for front disc brakes of mag wheel to be added is 44mm
- The hole spacing for front and rear wheel both 44mm
- Wheels Rear Dropout: 135mm
- Attention: Standard 9 hole sprockets 24T to 60T in Kit do not work on this alum wheel, buyer need drill 6 holes in middle to make sprocket fit on the alum wheel or buyer buy CDH multifunctional sprocket which fits well on CDH alum wheel
Key Product Features

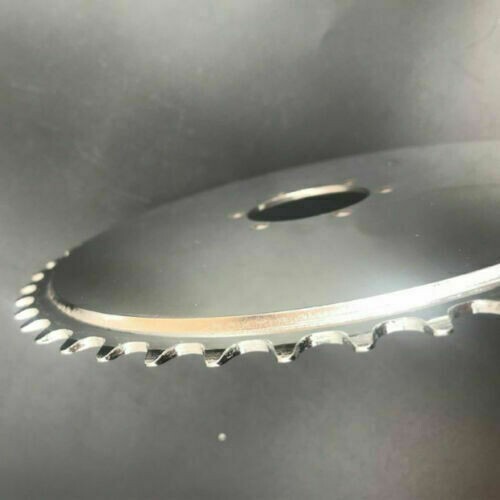

- 44 Teeth Sprocket with 6 holes for Mag Wheel
- Work great on aluminum material Mag Wheel.
- Works great with #415 chain.
- Aligns great with the wheel using 6 bolt pattern.
- High grade steel material.
Rear Mag wheel 26 inch only; Axle included to the mag wheelCompatible with Rotary Single Speed Flywheel26'' Rear Wheel, aluminum alloy, for normal 26inch bikes and 66/80cc/yd100 26inch motorized bicycleDesigned mainly for motorized bicyclesThanks for your trust and choosing CDHpower.
